Description
Slide Switch is for changing circuit by sliding the mini knob of the switch to control the circuit to be ON or OFF.
The Slide Switch is widely used in the electric toy, sound equipments, fax, test instrument equiopments, or other low voltage circuit electronic equipments.
This Slide Switch is with welding pin type terminals design for easily welding onto the circuit.
ON-ON type 2 Positions.
Make sure this fits by entering your model number.

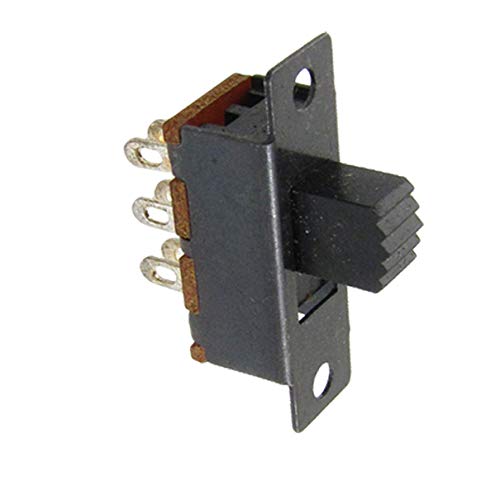

Product Name : Vertical Slide Switch;Model No. : SS22F32-G6;Position : 2;Pins Design : 6 Pins ( Double Rows )
Contact Type : 2P2T;Pin Width : 2mm/ 5/64″;Pins Pitch : 4mm/ 5/32″;Knob Height : 6mm/ 15/64″
Rating : DC 50V, 0.5A;Contacts Resistance : 30MΩ;Insulation Resistance : 100MΩ;Minimum Load : DC 500V
Dielectric Strengths : AC 500V / 1 minute;Life Test : 10000 cycles/ minute;Mounting Hole Dia : 2mm/ 5/64″;Overall Size : 23.3 x 7.4 x 18mm/ 0.63″ x 0.26″ x 0.71″ (L*W*H)
Material : Plastic & Metal;Color : As picture shown;Weight : 20g;Package : 10 x Vertical Slide Switch
